Rehatec GmbH

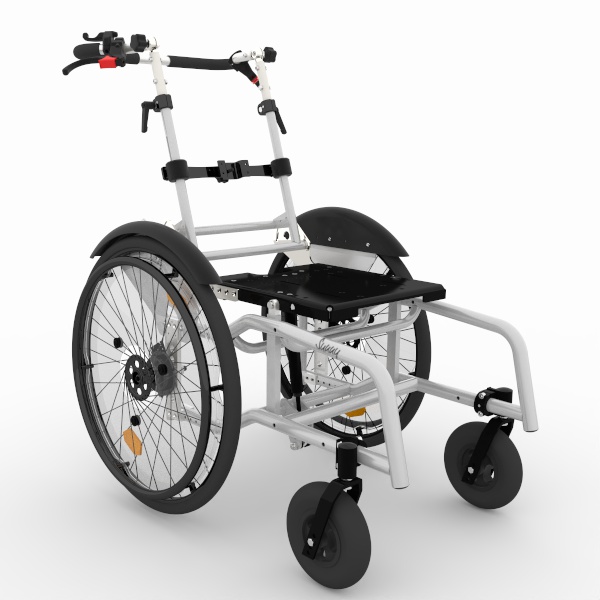

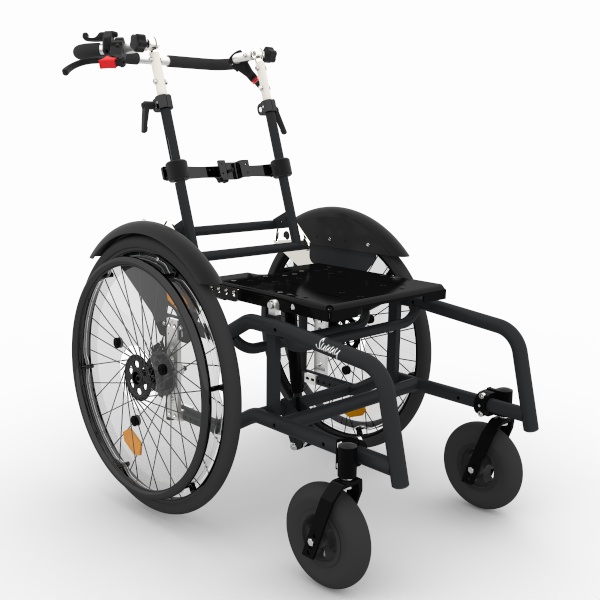

Sunny & Sunny Swing Mobility Bases
Sunny is a stable mobility base that is suitable for nearly any kind of seat shell. Due to its variable wheelbase, it even caters to extremely broad or narrow seat shells. Find out how to adapt back and seat easily to individual requirements.
Product information "Sunny & Sunny Swing Mobility Bases"
Highlights
- Adjustable wheel position
- Seat tilting up to 30° via gas spring
- Manually foldable back with recline up to 50°
- Crash-tested according to ISO 7176-19
The Sunny and Sunny Swing mobility bases offer you
... valuable functions and practical options to adjust the equipment
- Back can be folded down
- Manual back rest recline adjustment up to 50°
- Seat plane angle from 0° to 30°
- Extended wheelbase of Sunny Swing offers a maximum of stability
- Narrow attachment of wheels for narrow seat shells and a slim mobility base
- Sunny Swing with short frame to be combined with swing-up foot rests
- Sturdy frame design for customisations and supine shells
- Seat plate adjustable in depth
- Steplessly adjustable back that can be folded down
- Versatile wheels including aluminium wheel forks and castor stems
- Drive wheels with drum brake carriers and handbrake handles
- Variable axle block to mount drive wheels according to individual requirements
- Suitable as hemi wheelchair for adults
... and are easy and simple to use
- Practical design
- Easy seat tilting via gas spring
Reimbursement code Germany
26.99.01.1065 (with push rims)
26.99.01.1025 (with 12“ driving wheels)
Frame colours:
Pure White
Daffodil Yellow
Luminous Yellow
Pure Orange
Luminous Orange
Ruby Red
Pearl Ruby Red
Heather Violet
Bordeaux Violet
Ultramarine Blue
Metallic Traffic Blue
Pearl Night Blue
Water Blue
Light Green
Yellow Green
Pearl Green
Luminous Green
Anthracite Grey Matt
Metallic Silver
Metallic Anthracite
Graphite Black Matt
Glossy Jet Black
Frame colours:
Pure White
Daffodil Yellow
Luminous Yellow
Pure Orange
Luminous Orange
Ruby Red
Pearl Ruby Red
Heather Violet
Bordeaux Violet
Ultramarine Blue
Metallic Traffic Blue
Pearl Night Blue
Water Blue
Light Green
Yellow Green
Pearl Green
Luminous Green
Anthracite Grey Matt
Metallic Silver
Metallic Anthracite
Graphite Black Matt
Glossy Jet Black
Therapeutic benefits of Sunny or Sunny Swing in combination with a suitable seat shell
What are the therapy goals patients might achieve by using the Sunny/Sunny Swing mobility base in combination with an appropriate seat shell?
- Achieving a physiologically correct sitting position
- Increasing the muscle tone
- Correcting pathological positions and movements gently
Additional benefits:
- Corrected and supported sitting position provides safety and comfort
- Mobility increases a patient’s quality of life and provides new options to participate in everday life
- Mobility even in a rougher terrain
Anti-tip
| Measures | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Frame length |
Standard seat plate depth |
Depth of extended seat plate |
Min. seat height |
Seat plate - back height | Width of seat plate |
Depth of standard seat plate |
Depth of extended seat plate |
Knee angle extension from seat plate |
Wheel base extension |
Width between driving wheels with wheel guards | Width between driving wheels without wheel guards | Inner frame width - straight | Inner frame width - abducted | Back recline | Tilt-in-space |
| 2 | 70 cm | 41-46 cm | 46-51 cm | 43 cm | 55-65 cm | 35.5 cm | 39 cm | 44 cm | up to 20 cm | 8 cm | 50 cm | 53 cm | 38 cm | 46 cm | 50° | 30° |
| 3 | 70 cm | 41-46 cm | 46-51 cm | 43 cm | 55-65 cm | 38.5 cm | 39 cm | 44 cm | up to 20 cm | 8 cm | 53 cm | 56 cm | 41 cm | 49 cm | 50° | 30° |
| 2 Swing | 57 cm | 41-46 cm | 46-51 cm | 43 cm | 55-65 cm | 35.5 cm | 39 cm | 44 cm | up to 20 cm | 8 cm | 50 cm | 53 cm | 38 cm | - | 50° | 30° |
| 3 Swing | 57 cm | 41-46 cm | 46-51 cm | 43 cm | 55-65 cm | 38.5 cm | 39 cm | 44 cm | up to 20 cm | 8 cm | 53 cm | 56 cm | 41 cm | - | 50° | 30° |
